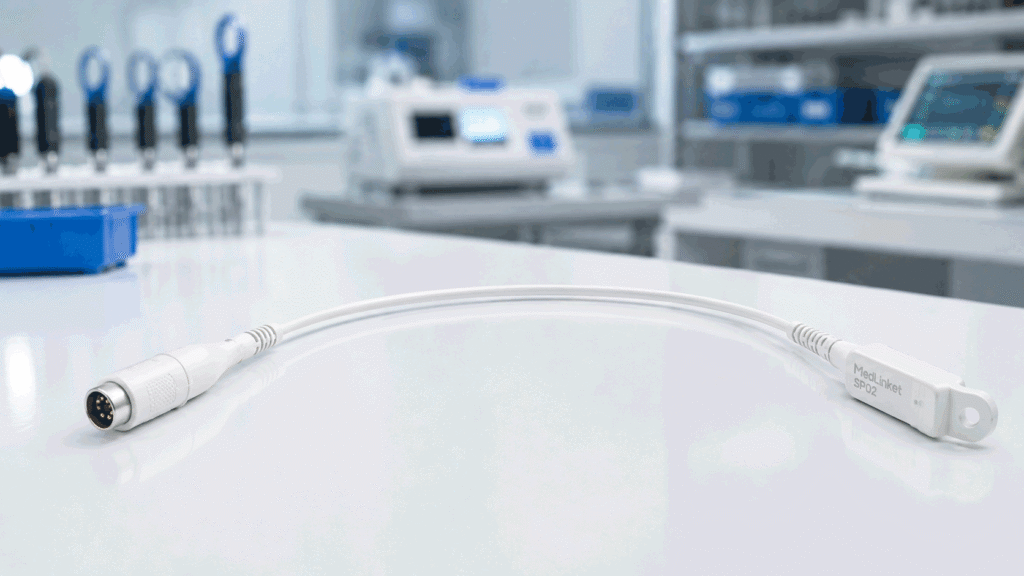

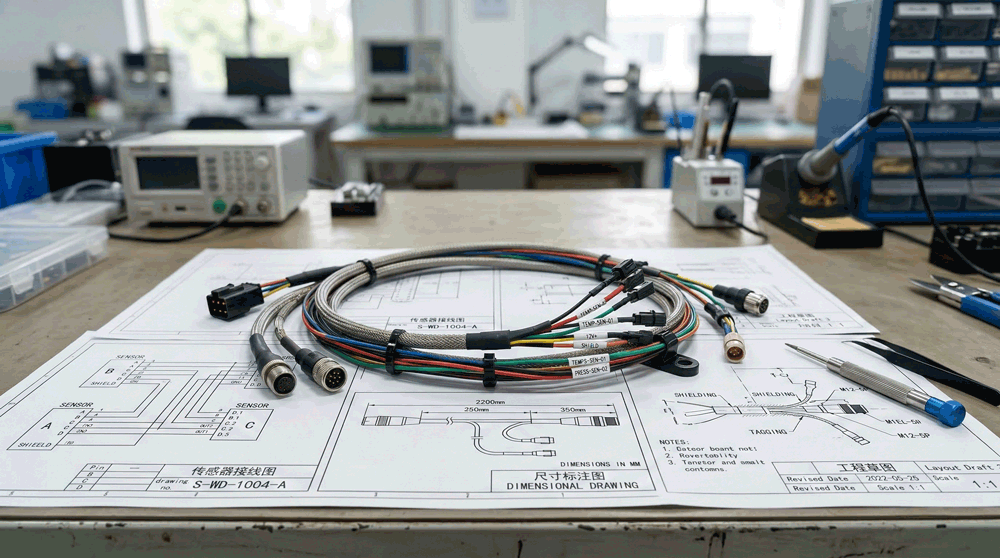

Waterproof sensor cable assemblies are used when sensors must operate in wet, dusty, outdoor, washdown, or harsh industrial environments. They may look like simple cables with sealed connectors, but waterproof performance depends on the complete assembly design, not only the connector body.
For OEM buyers, the key is to define the real environment before choosing the cable structure. Splash water, outdoor rain, temporary immersion, high-pressure cleaning, agricultural chemicals, coolant, mud, and vibration all create different risks. This guide explains how engineering and procurement teams should specify waterproof sensor cable assemblies before sample production.
Start with Environment
Waterproofing should start with the actual application environment.
Many buyers request a “waterproof sensor cable,” but this phrase is too broad for manufacturing. A cable used inside a machine with occasional moisture is different from a cable installed outdoors in rain. A cable used on agricultural equipment is different from one used in a food-processing washdown area. A cable exposed to splash water is different from one that may be temporarily immersed.
For OEM projects, the RFQ should describe where the cable will be installed and what type of exposure it will face. Will the cable be used indoors or outdoors? Is it exposed to rain, dust, mud, oil, coolant, cleaning chemicals, or fertilizer? Will the equipment be washed regularly? Will the cable move during operation? Is the connector area protected or directly exposed?
The supplier needs this information because waterproofing is not only a material decision. It affects connector selection, cable jacket, sealing method, strain relief, molding, heat shrink, inspection, and testing.
If the environment is unclear, the supplier may choose a general waterproof structure that looks suitable but does not fully match the real application. This can create field failures after the equipment is shipped.
For broader sensor cable specification, buyers can also review Sensor Cable Assemblies for OEM Equipment.
Define Waterproof Level
Waterproof requirements should be defined by expected exposure, not by vague wording.
In many OEM projects, buyers use terms like waterproof, water-resistant, sealed, outdoor grade, or IP-rated. These terms may mean different things to different teams. To avoid misunderstanding, the RFQ should define the expected protection level and use condition as clearly as possible.
If an IP rating is required, buyers should state the target rating and test expectation. IP67 and IP68 are often discussed for waterproof sensor cable assemblies, but they are not the same. IP67 usually relates to temporary immersion under defined conditions. IP68 generally indicates a higher or more continuous immersion condition, but the exact test depth and time should be agreed upon.
However, an IP rating alone may not fully describe the real risk. A cable used in high-pressure washdown may face a different challenge from a cable submerged in still water. A cable used outdoors may need UV resistance, temperature resistance, and long-term sealing stability, not only short-term water resistance.
For OEM buyers, the practical question is: what will the cable actually experience in the field? Occasional water splash, rain, machine washdown, mud, snow, condensation, oil mist, and chemical cleaning all require different design attention.
The more specific the requirement is, the easier it becomes for the supplier to design a manufacturable and testable cable assembly.
Choose Connectors
The connector is usually the first waterproof point, but it is not the only one.
Waterproof sensor cable assemblies may use M8 connectors, M12 connectors, circular connectors, molded connectors, sealed plugs, or customer-specific waterproof interfaces. The connector should match the sensor interface, pin count, coding, current rating, signal type, locking method, and sealing requirement.
For industrial sensor applications, M8 and M12 waterproof sensor cables are common because they provide compact and reliable field connections. But even with these common connector types, buyers must define pin count, coding, gender, straight or angled body, cable exit direction, shielding, and mating interface.
Connector sealing depends on both sides of the connection. A well-made cable connector may still fail if the mating connector is damaged, poorly designed, or not tightened properly. For OEM equipment, the complete mating pair should be reviewed, not only the cable side.
Thread quality and locking method are also important. If the connector is not tightened correctly, water may enter through the mating interface. If the connector is frequently connected and disconnected, wear can also reduce sealing performance over time.
For waterproof applications, the supplier should confirm whether the connector is suitable for the required environment and whether the cable diameter matches the connector’s rear seal or molding structure.
For related connector selection, buyers can review M8 and M12 Sensor Cable Assemblies.
Check Cable Jacket
The cable jacket must match the environment.
A waterproof connector cannot protect the cable if the jacket material cracks, swells, becomes brittle, or is damaged by abrasion. For waterproof sensor cable assemblies, the cable jacket should be selected according to moisture, oil, chemicals, UV exposure, temperature, flexibility, and mechanical stress.
PVC jackets may be suitable for many standard indoor or protected industrial applications. PUR jackets may be preferred when the cable needs better abrasion resistance, oil resistance, flexibility, or outdoor durability. Other materials may be considered for special temperature, chemical, or compliance requirements.
Outdoor sensor cables may also need UV resistance. A cable that performs well indoors may degrade when exposed to sunlight for long periods. If the cable is installed on outdoor equipment, agriculture machinery, solar-related systems, monitoring devices, or mobile machines, UV and temperature exposure should be considered early.
Chemical exposure should not be ignored. In agricultural, cleaning, medical, food-processing, or industrial environments, cables may contact cleaning agents, coolant, oil, fertilizer, disinfectant, or other fluids. Waterproofing alone does not guarantee chemical resistance.
Flexibility is also important. A cable used on a moving sensor, robotic system, mobile machine, or vibrating equipment may need better bending performance. If the jacket is too stiff, it may transfer stress to the connector and weaken the seal over time.
Seal the Rear
Many waterproof cable failures occur at the rear side of the connector.
The front mating interface is easy to notice, but the rear cable exit is just as important. Water may enter through the connector rear area if the seal, overmolding, heat shrink, cable jacket, or strain relief is not properly designed.
For molded waterproof sensor cable assemblies, the overmold should bond well with the connector and cable jacket. Poor molding can create small gaps, weak adhesion, or stress points. These defects may not be obvious during visual inspection, but they can become leakage paths in the field.
For non-molded connectors, rear sealing may depend on compression nuts, grommets, rubber seals, heat shrink, adhesive-lined tubing, or other sealing structures. These parts must match the cable diameter and material. If the cable is too small or too large for the sealing structure, the waterproof performance may be unstable.
Strain relief is part of the sealing design. If the cable bends sharply near the connector or is pulled during installation, the rear seal may loosen over time. A good design should reduce stress at the cable exit and protect the sealing area.
For OEM buyers, rear sealing details should be discussed before sample production. If the application has high water exposure, the sample should be checked for both front mating seal and rear cable exit seal.
Add Strain Relief
Waterproofing and mechanical protection are connected.
A cable may pass a water test when new, but fail later because vibration, pulling, bending, or abrasion damages the sealing area. This is why strain relief is critical for waterproof sensor cable assemblies.
Strain relief protects the transition between the connector and the cable. This area often faces bending stress during installation and operation. If the cable is used on a machine, vehicle, robot, agricultural device, or outdoor system, the cable exit may experience repeated movement or vibration.
Molded strain relief can help distribute stress and improve durability. Heat shrink, protective sleeves, boots, clamps, and routing supports may also be used depending on the application.
For OEM projects, strain relief should be designed according to the actual installation. A straight connector may be suitable when the cable exits freely. An angled connector may be better when space is limited or the cable must route immediately along a surface. A protective sleeve may be needed if the cable passes near a metal edge or moving part.
The RFQ should define whether the cable is static, moving, hanging, exposed to pull force, or routed through a constrained path. This helps the supplier choose a suitable strain relief method.
Consider Shielding
Waterproof sensor cables may also need shielding.
Many waterproof sensor cable assemblies are used outdoors or on industrial equipment, where they may be installed near motors, pumps, drives, power lines, or wireless devices. If the sensor signal is sensitive, shielding may be required to reduce electromagnetic interference.
However, shielding makes waterproof cable design more complex. The shield must be terminated correctly, and the termination must not damage the waterproof structure. If a drain wire is used, it must be handled safely and consistently. If the shield connects to a metal connector shell, the supplier must maintain both electrical continuity and sealing performance.
For M8 or M12 waterproof sensor cables, buyers should define whether shielding is required and how the shield should be connected. Is the shield connected to the connector shell? Is it connected to one end or both ends? Is the drain wire connected to a pin or left unconnected at one end? These decisions should match the equipment grounding design.
A waterproof cable that is poorly shielded may create signal instability. A shielded cable that is poorly sealed may create water ingress risk. Both issues must be balanced.
If shielding is important, buyers can review Sensor Cable Shielding Guide for more detailed design and RFQ points.
Test the Assembly
Waterproof sensor cable assemblies should be tested according to the application risk.
Basic electrical testing is still necessary. The cable should be checked for continuity, pinout, short circuit, polarity, shield continuity if required, connector fit, and visual workmanship. However, electrical testing alone does not confirm waterproof performance.
For waterproof applications, inspection should include connector sealing surfaces, overmold quality, rear seal condition, cable jacket damage, strain relief, and mating fit. If the application requires a defined waterproof level, the test method should be discussed before production.
Not every project needs the same waterproof test. A low-risk indoor cable may only need visual and fit checks. A cable used in outdoor equipment, agricultural machines, or washdown environments may need more serious sealing validation.
The sample stage is especially important. OEM buyers should test the cable in the real equipment whenever possible. Install the cable, route it as it will be used, tighten the connector, check the bend area, and observe whether the sealing structure is under stress.
For production, the supplier should define which checks are performed 100% and which are sampled. Electrical testing is often 100%, while sealing-related checks may depend on project requirement, risk level, and agreed inspection plan.
For related production support, see Tests & Inspections and Quality Guarantee.
Validate Samples
A waterproof cable sample should be evaluated in realistic conditions.
Many buyers approve samples after checking connector fit and cable length. For waterproof sensor cables, this is not enough. The sample should also be checked for sealing structure, cable flexibility, routing, strain relief, connector tightening, label durability, and environmental suitability.
If the cable is used outdoors, check whether the jacket material is suitable for sun, temperature, and moisture. If the cable is used on agricultural equipment, check exposure to mud, vibration, fertilizer, or cleaning. If it is used in washdown equipment, check connector sealing and cable exit protection.
The sample should also be installed in the real device if possible. A cable may look excellent on a table but fail when routed through a tight space or bent sharply near the connector. Installation testing can reveal stress points that visual inspection cannot.
Feedback should be specific. If the cable is too stiff, mark the routing issue. If the connector angle is wrong, provide installation photos. If the rear seal looks weak, request a design review. If the label may peel off in moisture, define a better label or marking method.
After sample approval, the final design should be controlled by drawing, wiring table, material specification, and test plan. A physical sample alone is not enough for repeat production.
For sample-to-production control, buyers can also review Prototype to Production Guide.
Prepare RFQ
A clear RFQ helps the supplier design the correct waterproof sensor cable assembly.
| RFQ Item | What OEM Buyers Should Define |
|---|---|
| Application | Outdoor, washdown, agricultural, industrial, medical, mobile |
| Water exposure | Splash, rain, washdown, temporary immersion, condensation |
| Connector | M8, M12, circular, molded, sealed plug, custom interface |
| IP target | IP67, IP68, or application-specific sealing requirement |
| Cable jacket | PVC, PUR, UV-resistant, oil-resistant, chemical-resistant |
| Shielding | Required or not, shield termination, drain wire treatment |
| Strain relief | Molded, boot, sleeve, clamp, angled connector, routing support |
| Length | Total length, tolerance, measurement reference |
| Testing | Electrical test, sealing check, fit check, visual inspection |
| Quantity | Prototype, pilot, annual demand |
| Labeling | Waterproof label, printed marking, sleeve, barcode |
| Packaging | Individual bag, kit packing, moisture protection if needed |
If the buyer is not sure about the IP target or sealing test, the real environment should still be described. A capable supplier can then suggest a practical structure for prototype review.
Avoid Mistakes
Waterproof cable problems often come from assumptions.
One common mistake is assuming that a waterproof connector makes the full assembly waterproof. The cable jacket, rear seal, overmold, strain relief, mating connector, and installation method all matter.
Another mistake is using vague terms like “outdoor cable” without defining rain, UV exposure, temperature, mud, oil, or cleaning conditions. Outdoor environments vary widely, and the cable should match the real exposure.
A third mistake is ignoring the rear side of the connector. Many leakage problems happen at the cable exit, not the front mating interface.
Shielding can also create risk. If the shield termination is not designed properly, it may weaken the sealing structure or create inconsistent production results.
Testing is another common gap. A cable may pass continuity testing but still fail in wet conditions. For waterproof applications, sealing and installation checks should be considered during sample approval.
Finally, buyers sometimes approve a sample without controlling materials. If jacket material, connector source, molding method, or seal structure changes later, waterproof performance may also change. Change control is essential for repeat orders.
Final View
Waterproof sensor cable assemblies should be designed around the real environment, not only around a connector type.
For OEM buyers, the most important step is to define the application clearly. A cable used in splash water, rain, washdown, outdoor machinery, agricultural equipment, or temporary immersion should not be specified the same way. Connector sealing, rear sealing, jacket material, shielding, strain relief, routing, and testing must work together.
A good waterproof sensor cable supplier should help review the environment, select suitable materials, confirm connector compatibility, design practical sealing, and support sample validation before production release.
At Infinite Harness, we support custom waterproof sensor cables, M8 and M12 waterproof cable assemblies, shielded sensor cables, and small-batch OEM cable assembly projects. If your equipment needs waterproof sensor cable assemblies, send us your drawing, connector requirement, environment details, target quantity, and testing expectations. We can help review the design and provide a manufacturable solution.
FAQ
What is a waterproof sensor cable?
A waterproof sensor cable is a cable assembly designed to connect sensors in wet, outdoor, washdown, or harsh environments. It usually includes sealed connectors, suitable jacket material, strain relief, and application-specific testing.
Is an M12 waterproof connector enough?
No. A waterproof connector helps, but the full cable assembly must also have a suitable rear seal, cable jacket, overmold or sealing structure, strain relief, and correct mating interface.
What is the difference between IP67 and IP68?
IP67 and IP68 both relate to water protection, but they are not identical. IP67 usually refers to temporary immersion under defined conditions. IP68 normally indicates a higher or more continuous immersion condition, but depth and time should be agreed upon.
When should PUR cable be used?
PUR cable may be considered when the application requires better abrasion resistance, flexibility, oil resistance, or durability. It is often useful for industrial, outdoor, mobile, or equipment applications with mechanical stress.
Should waterproof sensor cables be tested?
Yes. They should be electrically tested and visually inspected. Depending on the application risk, sealing checks, connector fit checks, strain relief review, and sample validation in the real equipment may also be needed.
