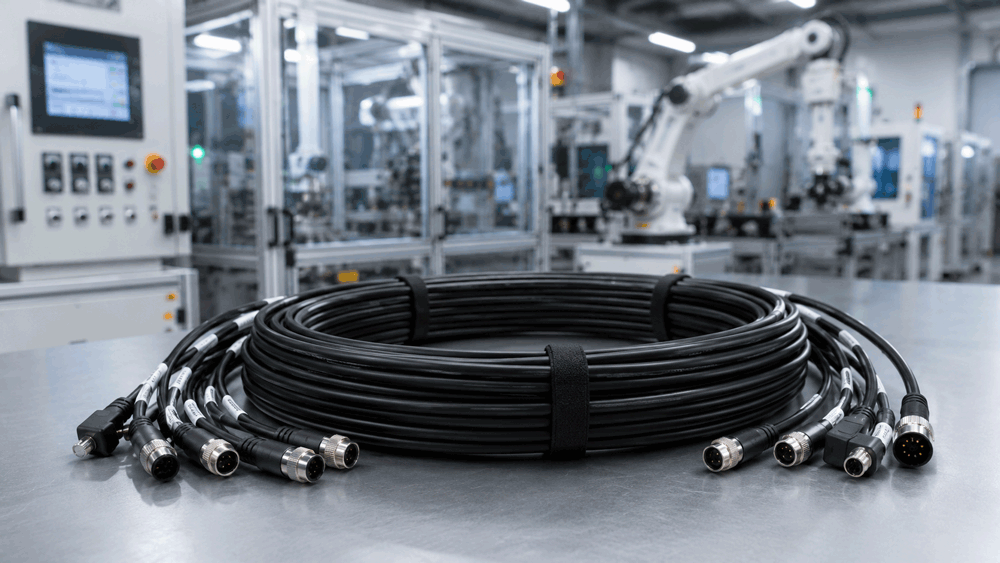

M8 and M12 sensor cable assemblies are widely used in industrial automation, machinery, robotics, agricultural equipment, control systems, and monitoring devices. They look simple from the outside, but for OEM projects, small specification mistakes can create mating problems, signal issues, waterproof failures, or production delays.
For OEM buyers, the key is not only choosing “an M8 cable” or “an M12 cable.” The RFQ should define connector coding, pin count, gender, straight or angled style, cable jacket, shielding, waterproofing, length tolerance, testing, and production requirements. This guide explains how engineering and procurement teams should specify M8 and M12 sensor cable assemblies before sample production.
Start with Use
M8 and M12 sensor cable assemblies are often selected because they provide compact, reliable, and standardized field connections. However, the correct cable depends on how and where it will be used.
An M8 cable may be suitable for compact sensors, small devices, and space-limited equipment. An M12 cable may be preferred when the application needs a stronger connector body, more common industrial interface, higher mechanical stability, or broader field-device compatibility. The choice should be based on equipment design, sensor interface, installation space, signal type, and service requirements.
For OEM buyers, the first question should be: what does this cable connect? It may connect a proximity sensor, photoelectric sensor, encoder, actuator, control module, I/O box, field device, or industrial monitoring unit. Each application can require a different pin count, cable structure, shielding method, and connector style.
The installation environment is equally important. A cable inside a control cabinet faces different risks from a cable installed on outdoor machinery, mobile equipment, robotic arms, or washdown equipment. If the cable is exposed to vibration, oil, water, dust, sunlight, or repeated bending, the connector and cable material must be selected accordingly.
Before requesting a quote, buyers should describe the application, installation location, sensor type, signal type, movement condition, and environment. This helps the supplier choose a practical structure instead of only matching the appearance of an old cable.
For broader sensor cable selection, you can also review Sensor Cable Assemblies for OEM Equipment.
Choose M8 or M12
M8 and M12 connectors are both common in industrial sensor cables, but they are not interchangeable.
M8 connectors are smaller and are often used where space is limited. They are common in compact sensors, small actuators, lightweight devices, and equipment where cable routing space is tight. Their compact size can help reduce installation volume, but it also means the connector may have less mechanical robustness than larger alternatives.
M12 connectors are larger and widely used in industrial automation. They are common in sensor networks, field devices, I/O systems, industrial control equipment, and machinery. M12 connectors often provide a more robust field connection and are available in many coding and pin configurations.
The decision should not be based only on connector size. Buyers should consider the equipment interface, required pin count, signal type, mechanical stress, operator access, cable exit direction, and field service needs. If technicians need to connect and disconnect the cable frequently, handling space and locking reliability become important.
For OEM equipment, consistency is also important. If the existing system already uses M12 interfaces, adding another M12 cable may reduce service complexity. If the design is compact and every millimeter matters, M8 may be more suitable.
When replacing an old cable, do not assume that a visually similar M8 or M12 connector will work. The supplier still needs the exact coding, pin count, gender, and wiring definition.
Define Coding
Connector coding is one of the most important specifications for M8 and M12 sensor cable assemblies.
Coding defines the mechanical keying and intended interface of the connector. Two M12 connectors may look similar, but if the coding is different, they may not mate correctly. Even if they appear physically close, using the wrong coding can create assembly failure, field confusion, or equipment damage.
For OEM buyers, coding should be clearly stated in the drawing and RFQ. It is not enough to write “M12 connector.” The RFQ should define whether the connector is A-coded, B-coded, D-coded, X-coded, or another required coding type, depending on the application.
A-coded connectors are commonly used for sensors, actuators, and general industrial signals. D-coded and X-coded options are often associated with industrial data or Ethernet-related applications. The correct choice depends on the equipment interface and signal requirement.
If the buyer is copying an existing cable, the coding should still be verified. Photos can help, but photos alone may not be enough. A clear connector part number, datasheet, or mating interface information is much safer.
Coding errors are especially painful because they may not be discovered until sample fitting or equipment assembly. At that point, the cable may be electrically correct but mechanically unusable. This is why connector coding must be confirmed before sample production.
Check Pin Count
Pin count defines how many electrical contacts are available in the connector.
M8 and M12 sensor cable assemblies may have different pin counts depending on the sensor, signal, power, and communication needs. A simple sensor may need only a few pins. A more complex device may require power, ground, signal, shield, and additional control lines.
For OEM buyers, pin count should be defined together with pinout. Writing “4-pin M12” is not enough. The drawing should show which signal connects to which pin, and which wire color or conductor corresponds to each position.
Pinout errors are common when a buyer provides only a sample or photo. A supplier can identify the connector shape, but it cannot safely guess the internal wiring. Two cables with the same connector and same pin count may have completely different wiring.
If wire color matters for installation or troubleshooting, it should also be defined. In some OEM projects, field technicians rely on wire color to identify power, ground, signal, or shield. If wire color changes without approval, service work becomes more difficult.
For repeat production, the approved pinout should be controlled. The supplier should use the same wiring table, test fixture, and inspection standard for each batch.
Select Gender
Connector gender is another basic specification that can still cause mistakes.
M8 and M12 sensor cable assemblies may use male connectors, female connectors, or one male end and one female end. The correct selection depends on the sensor, equipment port, panel interface, and mating cable.
For OEM projects, the RFQ should clearly define connector gender on each end. If the cable has two connectors, both ends should be identified. For example, one end may be M12 female straight, while the other end may be M12 male angled. If the cable has one connector and one open end, the open-end termination should also be defined.
A common issue is that photos do not clearly show connector gender, especially when the image is taken from a poor angle. Another issue is confusing the gender of the connector housing with the gender of the electrical contacts. The safest method is to provide a connector part number, drawing, or mating interface.
Gender mistakes usually lead to immediate mating failure. The cable may be well built, but it cannot be installed. This is why gender should be checked before quoting and again before sample production.
Straight or Angled
The connector body style affects installation, routing, and long-term stress.
Straight connectors are simple and common. They are suitable when the cable can exit directly from the sensor or equipment port without interfering with nearby parts. They are often easier to route when there is enough clearance.
Angled connectors are useful when space is limited or when the cable needs to exit in a specific direction. They can reduce bending stress near the connector and make installation cleaner in compact equipment. However, the direction of the angle must be defined carefully.
For OEM buyers, “right angle” is not always enough information. The supplier may need to know the cable exit direction relative to the connector key, pin layout, locking thread, or equipment mounting direction. If this is not defined, the sample may technically fit but route in the wrong direction.
This is especially important for panel-mounted sensors, compact devices, robotic systems, and field equipment where cable routing is constrained. A wrong cable exit direction can cause interference, sharp bending, or difficult assembly.
When possible, buyers should provide installation photos, 3D views, or marked drawings showing how the cable should exit from the connector. This reduces the risk of building a sample with the wrong orientation.
Choose Cable Jacket
The cable jacket should be selected according to the working environment.
For M8 and M12 sensor cable assemblies, common jacket considerations include flexibility, abrasion resistance, oil resistance, water exposure, UV exposure, temperature range, and bending performance. A cable used inside a dry cabinet does not need the same jacket as a cable installed on mobile outdoor equipment.
PVC jacket material is often used for standard industrial applications where cost and general performance are balanced. PUR jacket material may be preferred when better abrasion resistance, oil resistance, flexibility, or durability is needed. Other materials may be considered for special temperature, chemical, or compliance requirements.
Cable flexibility is very important when the cable moves during operation. A static sensor cable may not require high-flex material, but a cable used on moving machinery, robotic arms, sliding mechanisms, or drag-chain systems may need a different cable construction.
Cable diameter also affects installation. A larger cable may be stronger but harder to route in compact areas. A smaller cable may be easier to install but may have less mechanical protection or limited conductor options. Buyers should balance routing space, durability, electrical requirements, and cost.
For OEM buyers, jacket selection should not be left as a supplier assumption. The RFQ should define whether the application is indoor, outdoor, moving, oily, wet, exposed to sunlight, or near sharp edges.
Add Shielding
Shielding should be considered when the sensor cable carries sensitive signals or operates near electromagnetic interference.
M8 and M12 sensor cable assemblies are often used in industrial environments where motors, drives, relays, pumps, switching power supplies, and high-current cables may create noise. If the sensor signal is sensitive, poor shielding can cause unstable readings, false triggers, communication errors, or intermittent faults.
However, shielding is not just a material choice. Buyers should define whether shielding is required, what cable structure is expected, whether a drain wire is needed, and how the shield should be connected to the connector or equipment ground.
For some applications, shield continuity through the connector is important. For other applications, the shield may only need to be connected at one end. The correct approach depends on the equipment grounding design and noise-control strategy.
A common mistake is writing “shielded M12 cable” without defining how the shield is terminated. This can lead to different production methods across suppliers or even across batches. For repeat production, the shielding process should be documented in the work instruction and verified during inspection.
If shielding is important for the project, buyers can link this requirement with the broader design considerations in Shielded Cable Assemblies.
Plan Waterproofing
Waterproofing is one of the major reasons buyers choose molded M8 and M12 sensor cable assemblies.
Many industrial sensor cables are used in environments with moisture, dust, outdoor exposure, washdown, agricultural equipment, or mobile machinery. In these cases, waterproof performance depends on the connector, cable jacket, sealing structure, molding process, and strain relief.
A waterproof connector does not automatically make the entire cable assembly waterproof. The cable diameter must match the connector sealing structure. The rear seal, overmold, gasket, thread, and strain relief must work together. If one part is weak, water may enter through the cable exit, connector rear area, or mating interface.
For OEM buyers, waterproof requirements should be defined according to the real environment. Is the cable only exposed to occasional splashes? Is it used outdoors in rain? Will it face high-pressure cleaning? Is it exposed to mud, fertilizer, coolant, or oil? These conditions require different design choices.
The mating connector should also be considered. A waterproof cable assembly can fail if it mates with a poor-quality or damaged interface. For field equipment, buyers should verify the complete connection, not only the cable side.
Waterproofing should be validated during sample testing when the application risk is high. If the cable is used in outdoor machinery, agricultural equipment, or washdown environments, sample approval should include sealing review and installation checks.
Control Length
Cable length looks simple, but it affects installation, routing, cost, and production control.
For M8 and M12 sensor cable assemblies, the drawing should define the total cable length and tolerance. If the cable has two connectors, the measurement reference points should be clear. If the cable has a connector on one end and flying leads on the other end, the stripped length, conductor length, and outer jacket length should be defined.
In compact OEM equipment, a small length difference can create routing problems. A cable that is too short may create tension on the connector. A cable that is too long may require extra bundling, interfere with moving parts, or create a messy assembly.
For field equipment, length also affects serviceability. A cable that is too tight may fail under vibration or movement. A cable that is too long may be exposed to abrasion or snagging.
Buyers should also define whether the cable requires labels, markings, sleeves, or routing clips at certain positions. Label position tolerance should be controlled if technicians need to read the label after installation.
Length tolerance should be practical. Overly tight tolerance may increase production difficulty and cost. Overly loose tolerance may create installation problems. A capable supplier should help review the tolerance based on cable type, assembly method, and application requirement.
Test Before Release
Testing should be defined before production release, not after problems appear.
For M8 and M12 sensor cable assemblies, the basic test plan usually includes continuity, pinout, short-circuit check, polarity check, visual inspection, connector fit, and dimensional inspection. For shielded cables, shield continuity and shield termination should also be checked. For higher-risk applications, insulation resistance, pull force, or sealing-related checks may be required.
Connector fit should not be ignored. A cable can pass electrical testing but still fail if the connector does not mate smoothly, the locking thread is poor, the angle is wrong, or the sealing surface is not correct.
Visual inspection is also important. Inspectors should check molding quality, cable jacket damage, connector orientation, label content, label position, open-end stripping, and overall workmanship.
For pilot production, repeatability should be reviewed. One good sample does not prove that the process is ready for batch production. The supplier should confirm that the same connector, cable, pinout, crimping process, shielding method, and test standard can be repeated.
For OEM projects, testing should be linked with records. If the buyer requires inspection reports, batch records, or traceability, these requirements should be discussed before mass production.
You can also refer to Tests & Inspections and Quality Guarantee for related production quality support.
RFQ Checklist
A clear RFQ helps the supplier quote faster and reduces sample mistakes.
| RFQ Item | What to Define |
|---|---|
| Connector size | M8 or M12 |
| Coding | A-coded, B-coded, D-coded, X-coded, or required type |
| Pin count | Number of pins and full pinout |
| Gender | Male, female, or mixed ends |
| Body style | Straight or angled connector |
| Cable jacket | PVC, PUR, or other material requirement |
| Shielding | Shield type, drain wire, shield termination |
| Protection | Waterproofing, overmolding, strain relief |
| Length | Total length, tolerance, measurement points |
| Testing | Continuity, pinout, shield, fit, pull, sealing |
| Quantity | Prototype, pilot, and production forecast |
If some information is not available, buyers should mark it as “to be confirmed” instead of leaving it unclear. A capable supplier can review the missing points and suggest a practical solution.
Avoid Mistakes
Many M8 and M12 sensor cable problems are caused by incomplete specifications.
One common mistake is missing connector coding. The buyer may write “M12 4-pin cable,” but the supplier still needs to know the coding and mating interface. Without coding confirmation, the sample may not fit the equipment.
Another mistake is unclear pinout. The connector may be correct, but the internal wiring may be wrong. This can cause sensor failure, communication issues, or equipment damage.
A third mistake is ignoring cable exit direction. For angled connectors, the wrong orientation can create routing problems even when the connector fits.
Shielding mistakes are also common. If the RFQ only says “shielded cable” without defining shield termination, the finished cable may not perform as expected.
Waterproofing is another area where assumptions create risk. A molded connector may look waterproof, but the full assembly must be designed and validated for the actual environment.
Finally, buyers sometimes treat the sample as the production standard without updating the drawing. For repeat orders, this creates consistency risk. The approved cable should be documented with a controlled drawing, wiring table, and test requirements.
Final View
M8 and M12 sensor cable assemblies are practical and reliable when they are specified correctly.
For OEM buyers, the RFQ should define more than connector size. It should include coding, pin count, gender, pinout, body style, cable jacket, shielding, waterproofing, length tolerance, testing, and quantity plan. These details help the supplier build the right sample and reduce project risk before production release.
A good sensor cable supplier should not only copy an existing cable. It should help check connector compatibility, review hidden risks, suggest suitable cable materials, confirm shielding and waterproofing requirements, and support the project from sample to pilot production.
At Infinite Harness, we support custom M8 and M12 sensor cable assemblies for industrial equipment, automation systems, agricultural machines, monitoring devices, medical equipment, and OEM projects. If you need a custom sensor cable, send us your drawing, connector requirement, application notes, target quantity, and testing needs. We can help review the specification and provide a manufacturable solution.
FAQ
What is the difference between M8 and M12 sensor cables?
M8 sensor cables are smaller and suitable for compact applications. M12 sensor cables are larger and widely used in industrial automation, field devices, and control systems. The best choice depends on space, interface, pin count, signal type, and mechanical requirements.
Why is connector coding important?
Connector coding defines the mating interface. Two M12 connectors may look similar but may not connect if the coding is different. The coding should be clearly defined in the RFQ and drawing.
Can M8 and M12 sensor cables be customized?
Yes. They can be customized by connector size, coding, pin count, gender, cable length, straight or angled style, shielding, jacket material, waterproofing, labeling, and testing requirements.
When should M12 sensor cables be shielded?
Shielding should be considered when the cable carries sensitive signals, operates near motors or power cables, or works in an environment with electromagnetic noise. The shield termination method should also be defined.
Is a molded M12 cable always waterproof?
No. Molded construction can support waterproofing, but the full assembly design matters. Cable jacket, connector seal, overmolding, strain relief, mating interface, and installation environment all affect waterproof performance.
