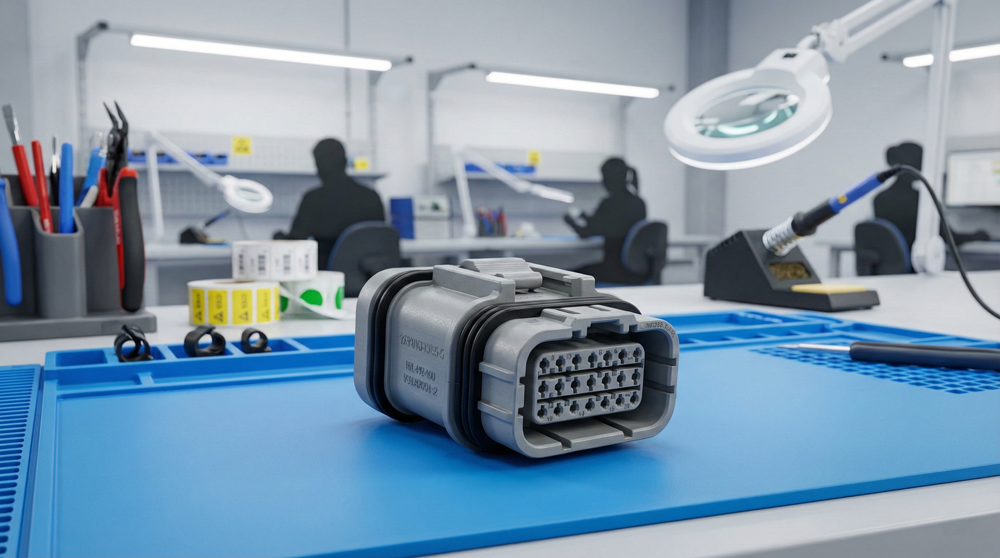

Connector Locking Systems for Cable Assemblies

Connector locking systems are often treated as a mechanical preference, but in many cable assembly projects the locking system becomes a primary reliability factor. Locking affects vibration retention, incomplete mating risk, maintenance speed, service error rate, and long-term field stability. A connector can meet electrical requirements and still fail in service because the locking system is not matched to the real installation and handling conditions.

This article explains connector locking systems for cable assemblies from an OEM buyer and engineering review perspective. The goal is to help teams choose locking systems that match vibration conditions, service access, operator behavior, and reliability targets instead of relying on habit or catalog familiarity.

This article is part of the P9 connector selection series and works with Connector Selection Guide for Cable Assemblies, Mating Cycle Guide for Cable Assemblies, and Connector Plating Guide for Cable Assemblies.

Table of Contents

Connector Locking Systems and Vibration

Connector locking systems and vibration risk are closely linked. In vibration-prone equipment, a connector that feels secure in a static bench test can become unstable over time if the locking system does not maintain retention under continuous vibration and handling. The failure may not look like an immediate disconnect. It may appear as intermittent contact, incomplete seating drift, or gradual retention degradation.

For OEM teams, vibration conditions should be treated as a primary input in locking selection. The connector retention method, engagement feedback, and tolerance behavior matter more than the connector brand name when vibration is a dominant stress.

Connector Retention and Vibration Load

Connector retention under vibration is influenced by how the lock carries load and how it reacts to tolerance variation. A locking system that relies on a small latch engagement may be vulnerable if the cable assembly is routed in a way that applies repeated side load or pull load to the connector. Over time, that load can reduce retention or allow partial movement that affects contacts.

This is why vibration review should include both the connector and the cable routing stress near the connector.

Lock Engagement and Vibration Stability

Lock engagement quality is another vibration driver. Some locking systems provide strong tactile feedback that confirms full engagement, while others provide weaker feedback and are more likely to be left partially engaged during assembly or service. In vibration environments, incomplete engagement becomes a reliability risk because vibration can worsen partial seating.

A locking system that supports consistent full engagement can reduce both vibration risk and service errors.

Connector Locking Systems and Service Access

Connector locking systems also affect service access and field maintenance behavior. A lock that is very secure may be difficult to operate in a tight space, which can slow maintenance, increase technician frustration, and lead to improper handling. A lock that is easy to release may speed maintenance but increase accidental disconnect risk if the system is exposed to vibration or handling.

For OEM buyers, this is a key tradeoff. Locking selection should reflect real service access constraints and realistic operator behavior rather than ideal assumptions.

Service Access and Lock Operation

Service access determines how the lock will actually be used. If technicians cannot easily see the connector alignment or reach the lock feature, they may twist cables, pull on housings, or remate repeatedly. These behaviors increase wear and can reduce connector stability even if the nominal locking system is strong.

This is one reason lock selection should be reviewed together with installation space and service workflow.

Service Speed and Field Errors

Service speed matters in equipment with downtime cost. A locking system that reduces service time can be valuable, but only if it does not increase error risk. Some locking systems are fast but provide weak confirmation of full engagement. Others are secure but slow. The right choice depends on whether the application prioritizes fast maintenance, maximum retention security, or a balanced approach.

A good locking system reduces both service time and error probability under real field conditions.

Connector Locking Systems and Mis-Mating Risk

Mis-mating risk includes incomplete mating, wrong mating, and accidental partial seating. Connector locking systems influence mis-mating risk because they define how clearly the connector indicates full engagement and how easy it is to operate correctly. In many cable assembly issues, the connector was not “bad.” The connector was not fully seated, or it was seated inconsistently across service events.

For OEM projects, mis-mating risk should be considered in both initial assembly and field service. A locking system that makes correct mating obvious can prevent many intermittent field issues that are difficult to diagnose later.

Incomplete Mating and Lock Feedback

Lock feedback is a practical reliability factor. If the locking system does not provide clear feedback, technicians may assume the connector is mated when it is not. Incomplete mating can create intermittent contact behavior that appears random and is often blamed on electronics rather than on connection quality.

This is why lock feedback and mating confirmation should be part of connector selection.

Mis-Mating and Field Handling

Field handling conditions can increase mis-mating risk. Dirt, gloves, low visibility, cold weather, or awkward body position can reduce mating precision and feedback recognition. A locking system that works well in a clean lab may not be as reliable in real service conditions.

OEM teams should review how the connector is used in the field when selecting the locking system, not only how it mates on a bench.

Connector Locking Systems and Cable Exit Stress

Cable exit stress is one of the most common hidden contributors to locking-system failures. Even when the locking system is theoretically adequate, cable routing near the connector can apply repeated side load, torsion, or pull force that challenges retention over time. This is especially common when cable bend space is limited and the cable exits into a tight bend near the connector.

For OEM projects, connector locking systems should be reviewed together with cable routing constraints and strain relief design. A locking system that is stable in a neutral geometry may become unstable if the cable is constantly pulling the connector in one direction.

Cable Routing and Connector Retention

Cable routing influences retention because it defines the direction and magnitude of load applied to the connector during operation. If the cable is routed in a way that creates continuous side load, the locking system can experience repeated micro-movement that reduces long-term stability.

This is why connector selection should include routing review, not only catalog fit.

Strain Relief and Lock Stability

Strain relief can improve lock stability by controlling load transfer away from the connector interface. If strain relief is weak or poorly matched to the routing path, the connector locking system may be forced to carry motion load, which increases risk of retention degradation and service failures.

If your application includes repeated movement, this is closely connected to Strain Relief Design for High Flex Cable Assemblies and High Flex Cable Testing Guide for OEM Buyers.

Connector Locking Systems and Mating Cycles

Locking system choice can influence mating cycle behavior. A lock that is difficult to operate can cause technicians to remate multiple times, apply excessive force, or twist cables during service. Over time, that increases wear and reduces practical mating cycle life. A lock that is easy to operate can reduce handling stress but may increase incomplete mating risk if feedback is weak.

For OEM buyers, this means locking selection should be coordinated with mating-cycle expectations and maintenance behavior rather than treated separately.

Lock Operation and Cycle Wear

Cycle wear is influenced by how the connector is repeatedly handled. In many field applications, the locking system is the feature technicians interact with most. If that feature is awkward, it can increase wear risk across both the lock and the contact interface.

This is why “ease of correct operation” should be a selection factor, not just retention strength.

Lock Selection and Maintenance Frequency

When maintenance frequency is high, locking ergonomics become even more important. A slightly slower but clearer lock may reduce errors and rework. A fast lock may reduce service time but increase error risk if the environment is harsh or access is limited. The right decision depends on the product’s maintenance profile and downtime cost.

This connects directly with Mating Cycle Guide for Cable Assemblies.

Connector Locking Validation for OEM Buyers

Connector locking validation for OEM buyers should confirm that the locking system stays stable under the real mechanical and service conditions. The goal is not only to confirm that the connector locks in the lab, but to confirm that it locks consistently, stays engaged under vibration and routing load, and can be operated correctly in the real service environment.

Validation becomes more important when vibration is strong, service access is limited, or mis-mating risk is high. In these cases, treating the lock as a minor option can create large field reliability risk.

Lock Validation and Service Simulation

Service simulation can reveal lock-related issues that static tests miss. If technicians operate connectors in tight access, with gloves, or in poor visibility, the locking system may behave differently than expected. Simulating these conditions during validation can prevent late surprises.

The goal is not to create expensive testing, but to test the assumptions that drive real lock risk.

Lock Validation and Repeatability

Repeatability matters in lock validation because assembly and service outcomes vary between operators. A lock that works well for one technician may produce incomplete engagement for another if feedback is weak. OEM teams should ensure lock performance is consistent across samples and realistic operator conditions.

This aligns with repeatability thinking in Tests & Inspections and Quality Guarantee.

OEM RFQ for Connector Locking Systems

An OEM RFQ for connector locking systems should describe vibration conditions, service access constraints, maintenance frequency, handling conditions, and reliability priorities. Broad connector descriptions like “use a locking connector” are usually not enough to guide a strong selection. The RFQ should clarify whether retention security, service speed, or mis-mating prevention is the dominant requirement.

If the connector is used in outdoor or harsh environments, the RFQ should also note contamination risk and whether technicians may operate the lock with gloves or in low-visibility conditions. These details often change which locking system is truly best.

Short installation photos and routing notes can greatly improve locking-system recommendations.

Common Connector Locking Mistakes

Common connector locking mistakes in cable assemblies usually come from selecting the lock by habit. One mistake is choosing a lock style that is secure in theory but difficult to operate in the installed space, which drives service errors and handling damage. Another mistake is choosing a fast lock with weak engagement feedback in a vibration environment, which increases incomplete mating risk.

A third mistake is ignoring cable exit stress and routing load near the connector. A fourth is skipping validation that simulates real service conditions. Projects that avoid these mistakes usually treat locking systems as reliability-critical and evaluate them together with routing, service access, and maintenance behavior.

Conclusion for Connector Locking Systems

Connector locking systems for cable assemblies are not cosmetic features. They are reliability features that influence vibration retention, mis-mating risk, service speed, and long-term stability. The best locking choice is not universal. It depends on the application environment, service access, maintenance profile, routing stress, and validation expectations.

When OEM engineering, sourcing, and quality teams evaluate locking systems as part of connector-system reliability, connector selection becomes more robust and field failures related to incomplete mating and retention become much easier to prevent.

FAQ

Are connector locking systems important if the connector is electrically correct

Yes. Electrical correctness does not guarantee field stability. Locking affects retention under vibration, incomplete mating risk, and service behavior.

What causes incomplete mating problems in cable assemblies

Incomplete mating often comes from weak lock feedback, tight access, operator handling, and contamination. Lock design strongly influences whether full engagement is achieved consistently.

Should connector locking systems be reviewed with cable routing

Yes. Cable routing can apply side load and pull load that challenges retention. Lock selection should include cable exit stress review.

How should OEM buyers validate connector locking systems

Validate locking under vibration, routing load, and realistic service operation. Service simulation and repeatability checks are often more valuable than static lab locking checks alone.

What should be included in an RFQ for connector locking systems

Include vibration level, access constraints, maintenance frequency, operator conditions, mis-mating risk, and whether retention security or service speed is prioritized.
